ViewModel的SavedStateHandle

SavedStateHandle 状态保存

之前状态保存

以往如果需要在 Activity 或者 Fragment 中保存数据状态则需要重写onSaveInstanceState ，使用 bundle 去存储相应的数据和状态，但是这也只能保存轻量简单的序列化数据。而 ViewModel 可以做到在配置变更后依然持有状态。

SavadStateHandle 介绍

在 androidX 的 Fragment1.2.0 或 Activity1.1.0，默认的 ViewModel 的 factory 支持 ViewModel 传递一个 SavedStateHandle 构造参数不需要任何其他配置

1

class SavedStateViewModel(private val state: SavedStateHandle) : ViewModel() { ... }

如果自定义 ViewModelProvider.Factory，需要用 AbstractSavedStateViewModelFactory

旧版本的 fragments，需要引入 lifecycle-viewmodel-savedstate，用 SavedStateViewModelFactory 作为你的 factory。

引入库：

1

implementation "androidx.lifecycle:lifecycle-viewmodel-savedstate:2.2.0"

SavedStateHandle 使用

存/取值

SavedStateHandle 有下列方法：

  1. get(String key)
  2. contains(String key)
  3. remove(String key)
  4. set(String key, T value)
  5. keys()
  6. getLiveData(key)

支持的类型

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

// doesn't have Integer, Long etc box types because they are "Serializable"
private static final Class[] ACCEPTABLE_CLASSES = new Class[]{
    //baseBundle
    boolean.class,
    boolean[].class,
    double.class,
    double[].class,
    int.class,
    int[].class,
    long.class,
    long[].class,
    String.class,
    String[].class,
    //bundle
    Binder.class,
    Bundle.class,
    byte.class,
    byte[].class,
    char.class,
    char[].class,
    CharSequence.class,
    CharSequence[].class,
    // type erasure ¯\_(ツ)_/¯, we won't eagerly check elements contents
    ArrayList.class,
    float.class,
    float[].class,
    Parcelable.class,
    Parcelable[].class,
    Serializable.class,
    short.class,
    short[].class,
    SparseArray.class,
    (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP ? Size.class : int.class),
    (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP ? SizeF.class : int.class),
};

案例

AndroidViewModel SavedStateHandle

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

// SavedViewModel
class SavedViewModel(application: Application, private val handle: SavedStateHandle) : AndroidViewModel(application) {
    companion object {
        private const val KEY_NUMBER = "KEY_NUMBER"
        private const val KEY_USER = "KEY_USER"
    }
    fun getNumber(): MutableLiveData<Int> {
        if (!handle.contains(KEY_NUMBER)) {
            handle[KEY_NUMBER] = 0  // 判断Handle里面的值是否被初始化，如果没有，就赋值这个key的值为0
        }
        return handle.getLiveData(KEY_NUMBER)
    }
    fun addNumber(n: Int) {
        val result = getNumber().value?.plus(n)
        getNumber().value = result
    }
    fun getUser(): MutableLiveData<ViewModelUser> {
        if (!handle.contains(KEY_USER)) {
            handle[KEY_USER] = ViewModelUser("hacket", 28)
        }
        return handle.getLiveData(KEY_USER)
    }
    fun addAge(age: Int) {
        val user = getUser().value!!
        user.age = user.age.plus(age)
        getUser().postValue(user)
    }
}

// ViewModel保存状态
class ViewModel保存状态 : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_view_model_saved_state)

        val viewModel = ViewModelProvider(this)[SavedViewModel::class.java]

        viewModel.getNumber().observe(this) {
            tv_result.text = "$it"
        }
        btn_add.setOnClickListener {
            val input = et_input.text.toString()
            viewModel.addNumber(input.toInt())
        }

        viewModel.getUser().observe(this) {
            val user = it as ViewModelUser
            tv_result_user.text = user.toString()
        }
        btn_add_user.setOnClickListener {
            val input = et_input.text.toString()
            viewModel.addAge(input.toInt())
        }
    }
}

@Parcel(value = Parcel.Serialization.BEAN)
data class ViewModelUser @ParcelConstructor constructor(val name: String, var age: Int)

获取 Activity intent Bundle

  • 启动 dest，通过 extras 传递参数
1
2
3
4
5
6

val dest = Intent(this, DestActivity::class.java)
val extras = Bundle()
extras.putInt("test_int", 111)
extras.putString("test_string", "hacket")
dest.putExtras(extras)
startActivity(dest, extras)
  • ViewModel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

class DestViewModel(
    application: Application,
    private val savedStateHandle: SavedStateHandle
) : AndroidViewModel(application) {

    fun parseArgus() {
        for (key in savedStateHandle.keys()) {
            Log.i("hacket", "parseArgus key=$key")
        }
        val testInt = savedStateHandle.get<Int>("test_int")
        val testString = savedStateHandle.get<String>("test_string")
        Log.i("hacket", "parseArgus testInt=$testInt")
        Log.i("hacket", "parseArgus testString=$testString")
    }
}
  • dest
1
2
3
4
5

class DestActivity : AppCompatActivity() {
    val vm by lazy {
        ViewModelProvider(this)[DestViewModel::class.java]
    }
}

获取 Fragment 的 arguments

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

// Fragment
class DestFragment : Fragment() {
    val vm by lazy {
        ViewModelProvider(this)[DestFragmentViewModel::class.java]
    }
    companion object {
        fun of(): DestFragment {
            return DestFragment().apply {
                val args = Bundle()
                args.putInt("test_int_frag", 120)
                args.putString("test_string_frag", "dasheng")
                arguments = args
            }
        }
    }
    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View {
        val tv = TextView(context)
        return tv
    }
    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)
        vm.parseArgus()
    }
}
// ViewModel
class DestFragmentViewModel(
    application: Application,
    private val savedStateHandle: SavedStateHandle
) : AndroidViewModel(application) {
    fun parseArgus() {
        for (key in savedStateHandle.keys()) {
            Log.i("hacket", "parseArgus key=$key")
        }
        val testInt = savedStateHandle.get<Int>("test_int_frag")
        val testString = savedStateHandle.get<String>("test_string_frag")
        Log.i("hacket", "parseArgus testInt=$testInt")
        Log.i("hacket", "parseArgus testString=$testString")
    }
}

模拟重建操作

资源配置变更

  1. 横竖屏切换模拟
  2. 开发者选项，不保留活动

模拟 App 被系统 kill（requires emulator running P+）

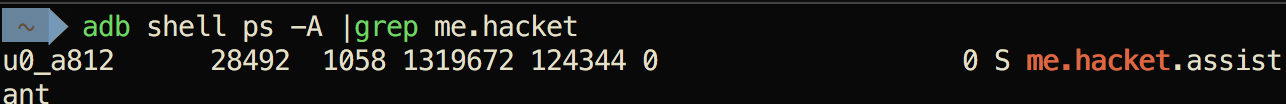

  1. 查看要模拟的 App 的进程，看是否存活
1

adb shell ps -A |grep me.hacket

2. 按 Home 键回到桌面（不按 Home kill 不了）
3. 运行命令

1

adb shell am kill me.hacket.assistant
  1. 再次确认查看是否存活，现在应该为空
1

adb shell ps -A |grep me.hacket
  1. 再次打开该 App，就能模拟 App 被系统 kill 的操作

原理

主要类

  • SavedStateProvider
  • SavedStateHandle
  • AbstractSavedStateViewModelFactory
  • SavedStateViewModelFactory

SavedStateViewModelFactory

SavedStateViewModelFactory 介绍：

SavedStateViewModelFactory 用于创建带 SavedStateHandle 参数的 Factory

  • 如果 ViewModel 是 AndroidViewModel，寻找构造器依次有 Application 和 SavedStateHandle 参数的
  • 如果不是 AndroidViewModel，那么构造器只接受 SavedStateHandle 参数
构造器

源码：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

// lifecycle-viewmodel-savedstate:2.6.1 SavedStateViewModelFactory
class SavedStateViewModelFactory : ViewModelProvider.OnRequeryFactory, ViewModelProvider.Factory {
	private var application: Application? = null
	private val factory: ViewModelProvider.Factory
	private var defaultArgs: Bundle? = null
	private var lifecycle: Lifecycle? = null
	private var savedStateRegistry: SavedStateRegistry? = null
	// 1个参数
	constructor() {
	    factory = ViewModelProvider.AndroidViewModelFactory()
	}
	// 2个参数
	constructor(
	    application: Application?,
	    owner: SavedStateRegistryOwner
	) : this(application, owner, null)
	// 3个参数
	constructor(application: Application?, owner: SavedStateRegistryOwner, defaultArgs: Bundle?) {
	    savedStateRegistry = owner.savedStateRegistry
	    lifecycle = owner.lifecycle
	    this.defaultArgs = defaultArgs
	    this.application = application
	    factory = if (application != null) getInstance(application)
	        else ViewModelProvider.AndroidViewModelFactory()
	}
}

参数：

  • application： Application，application 参数为 null 时，不支持创建 AndroidViewModel 实例
  • owner： SavedStateRegistryOwner，提供恢复 ViewModel 状态
  • defaultArgs： Bundle
create
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

// lifecycle-viewmodel-savedstate:2.6.1 SavedStateViewModelFactory
// 用了CreationExtras
override fun <T : ViewModel> create(modelClass: Class<T>, extras: CreationExtras): T {
    val key = extras[ViewModelProvider.NewInstanceFactory.VIEW_MODEL_KEY]
        ?: throw IllegalStateException(
            "VIEW_MODEL_KEY must always be provided by ViewModelProvider"
        )
	// 如果有SAVED_STATE_REGISTRY_OWNER_KEY和VIEW_MODEL_STORE_OWNER_KEY
    return if (extras[SAVED_STATE_REGISTRY_OWNER_KEY] != null &&
        extras[VIEW_MODEL_STORE_OWNER_KEY] != null) {
        // 从CreationExtras获取application
        val application = extras[ViewModelProvider.AndroidViewModelFactory.APPLICATION_KEY]
        // 是否是AndroidViewModel
        val isAndroidViewModel = AndroidViewModel::class.java.isAssignableFrom(modelClass)
        val constructor: Constructor<T>? = if (isAndroidViewModel && application != null) {
	        // 寻找AndroidViewModel(Application, SavedStateHandle)
            findMatchingConstructor(modelClass, ANDROID_VIEWMODEL_SIGNATURE)
        } else {
	        // 寻找ViewModel(SavedStateHandle)
            findMatchingConstructor(modelClass, VIEWMODEL_SIGNATURE)
        }
        // doesn't need SavedStateHandle
        if (constructor == null) {  // 不需要SavedStateHandle
            return factory.create(modelClass, extras)
        }
        val viewModel = if (isAndroidViewModel && application != null) {
	        // 构造AndroidViewModel(Application, SavedStateHandle)
            newInstance(modelClass, constructor, application, extras.createSavedStateHandle())
        } else {
	        // 构造ViewModel(SavedStateHandle)
            newInstance(modelClass, constructor, extras.createSavedStateHandle())
        }
        viewModel
    } else {  // 降级为没有CreationExtras的构造方式
        val viewModel = if (lifecycle != null) {
            create(key, modelClass)
        } else {
            throw IllegalStateException("SAVED_STATE_REGISTRY_OWNER_KEY and" +
                "VIEW_MODEL_STORE_OWNER_KEY must be provided in the creation extras to" +
                "successfully create a ViewModel.")
        }
        viewModel
    }
}

// 没有用CreationExtras
fun <T : ViewModel> create(key: String, modelClass: Class<T>): T {
    // empty constructor was called.
    val lifecycle = lifecycle
        ?: throw UnsupportedOperationException(
            "SavedStateViewModelFactory constructed with empty constructor supports only " +
                "calls to create(modelClass: Class<T>, extras: CreationExtras)."
        )
	// 判断是否为AndroidViewModel
    val isAndroidViewModel = AndroidViewModel::class.java.isAssignableFrom(modelClass)
    // 获取匹配的构造器
    val constructor: Constructor<T>? = if (isAndroidViewModel && application != null) {
		// 寻找有：(Application, SavedStateHandle)的构造器
        findMatchingConstructor(modelClass, ANDROID_VIEWMODEL_SIGNATURE)
    } else {
	    // 寻找有：(SavedStateHandle)的构造器
        findMatchingConstructor(modelClass, VIEWMODEL_SIGNATURE)
    }
    // constructor为空：没有找到带SavedStateHandle参数的构造器
    // doesn't need SavedStateHandle
    constructor
        ?: // If you are using a stateful constructor and no application is available, we
        // use an instance factory instead.
        return if (application != null) factory.create(modelClass) // 用AndroidViewModelFactory
        else instance.create(modelClass)  // 用NewInstanceFactory
    val controller = LegacySavedStateHandleController.create(
        savedStateRegistry!!, lifecycle, key, defaultArgs
    )
    val viewModel: T = if (isAndroidViewModel && application != null) {
	    // AndroidViewModel(Application, SavedStateHandle)
        newInstance(modelClass, constructor, application!!, controller.handle)
    } else {
		// ViewModel(SavedStateHandle)
        newInstance(modelClass, constructor, controller.handle)
    }
    viewModel.setTagIfAbsent(
        AbstractSavedStateViewModelFactory.TAG_SAVED_STATE_HANDLE_CONTROLLER, controller
    )
    return viewModel
}

override fun <T : ViewModel> create(modelClass: Class<T>): T {
    // ViewModelProvider calls correct create that support same modelClass with different keys
    // If a developer manually calls this method, there is no "key" in picture, so factory    // simply uses classname internally as as key.
    val canonicalName = modelClass.canonicalName
        ?: throw IllegalArgumentException("Local and anonymous classes can not be ViewModels")
    return create(canonicalName, modelClass)
}

private val ANDROID_VIEWMODEL_SIGNATURE = listOf<Class<*>>(
    Application::class.java,
    SavedStateHandle::class.java
)
private val VIEWMODEL_SIGNATURE = listOf<Class<*>>(SavedStateHandle::class.java)

// 创建modelClass实例，根据params调用对应的构造器
internal fun <T : ViewModel?> newInstance(
    modelClass: Class<T>,
    constructor: Constructor<T>,
    vararg params: Any
): T {
    return try {
        constructor.newInstance(*params)
    } catch (e: XXXException) { }
}

看看 findMatchingConstructor：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

internal fun <T> findMatchingConstructor(
    modelClass: Class<T>,
    signature: List<Class<*>>
): Constructor<T>? {
    // public me.hacket.assistant.samples.google.architecture.viewmodel.creationextras.MyExtraAndroidViewModel(android.app.Application,java.lang.String,java.lang.Integer,java.lang.Integer)
    for (constructor in modelClass.constructors) {
        // 返回构造器参数类型，是个数组，这里转成List：[class android.app.Application, class java.lang.String, class java.lang.Integer, class java.lang.Integer]
        val parameterTypes = constructor.parameterTypes.toList()
        Log.w(
            "hacket",
            "constructor.parameterTypes=${constructor.parameterTypes}, parameterTypes=$parameterTypes"
        )
        if (signature == parameterTypes) {
            @Suppress("UNCHECKED_CAST")
            return constructor as Constructor<T>
        }
        if (signature.size == parameterTypes.size && parameterTypes.containsAll(signature)) {
            throw UnsupportedOperationException(
                "Class ${modelClass.simpleName} must have parameters in the proper " +
                        "order: $signature"
            )
        }
    }
    return null
}
private val ANDROID_VIEWMODEL_SIGNATURE = listOf<Class<*>>(
    Application::class.java,
    SavedStateHandle::class.java
)
private val VIEWMODEL_SIGNATURE = listOf<Class<*>>(SavedStateHandle::class.java)

寻找参数匹配的 ViewModel 构造器，如：

1
2
3
4
5
6
7
8

class MyExtraAndroidViewModel(
    application: Application,
    private val param1: String?,
    private val param2: Int?,
    private val param3: Int?
)
// modelClass.constructors：MyExtraAndroidViewModel(android.app.Application,java.lang.String,java.lang.Integer,java.lang.Integer)
// constructor.parameterTypes.toList()：[class android.app.Application, class java.lang.String, class java.lang.Integer, class java.lang.Integer]

为什么 ViewModel 构造函数加个就 SavedStateHandle 可以保存？

ViewModelProvider 构造时，传递一个 ViewModelStoreOwner

1
2
3
4
5
6
7
8
9
10

class ViewModelProvider {
    public constructor(
        owner: ViewModelStoreOwner
    ) : this(owner.viewModelStore, defaultFactory(owner), defaultCreationExtras(owner))
	public constructor(owner: ViewModelStoreOwner, factory: Factory) : this(
        owner.viewModelStore,
        factory,
        defaultCreationExtras(owner)
    )
}

ComponentActivity 就是一个 ViewModelStoreOwner，当 owner 是一个 HasDefaultViewModelProviderFactory 时，通过 getDefaultViewModelProviderFactory() 来获取一个 Factory，看看 HasDefaultViewModelProviderFactory 是个什么东西：

1
2
3
4

public interface HasDefaultViewModelProviderFactory {
    @NonNull
    ViewModelProvider.Factory getDefaultViewModelProviderFactory();
}

用来提供一个默认的 ViewModelProvider.Factory，这个 Factory 通过 create() 用来创建 ViewModel 的；ComponentActivity 实现了该接口，我们接着看 getDefaultViewModelProviderFactory() 方法：

1
2
3
4
5
6
7
8
9
10
11
12
13

public ViewModelProvider.Factory getDefaultViewModelProviderFactory() {
    if (getApplication() == null) {
        throw new IllegalStateException("Your activity is not yet attached to the "
                + "Application instance. You can't request ViewModel before onCreate call.");
    }
    if (mDefaultFactory == null) {
        mDefaultFactory = new SavedStateViewModelFactory(
                getApplication(),
                this,
                getIntent() != null ? getIntent().getExtras() : null);
    }
    return mDefaultFactory;
}

直接 new 一个 SavedStateViewModelFactory，我们看 create() 方法是怎么创建 ViewModel 的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

// SavedStateViewModelFactory
public <T extends ViewModel> T create(@NonNull Class<T> modelClass) {
    String canonicalName = modelClass.getCanonicalName();
    return create(canonicalName, modelClass);
}

public <T extends ViewModel> T create(@NonNull String key, @NonNull Class<T> modelClass) {
    boolean isAndroidViewModel = AndroidViewModel.class.isAssignableFrom(modelClass);
    Constructor<T> constructor;
    if (isAndroidViewModel) {
        constructor = findMatchingConstructor(modelClass, ANDROID_VIEWMODEL_SIGNATURE); // 检测是否有SavedStateHandle参数
    } else {
        constructor = findMatchingConstructor(modelClass, VIEWMODEL_SIGNATURE);
    }
    // doesn't need SavedStateHandle
    if (constructor == null) {
        return mFactory.create(modelClass);
    }
    SavedStateHandleController controller = SavedStateHandleController.create(
            mSavedStateRegistry, mLifecycle, key, mDefaultArgs);
    try {
        T viewmodel;
        if (isAndroidViewModel) {
            viewmodel = constructor.newInstance(mApplication, controller.getHandle());
        } else {
            viewmodel = constructor.newInstance(controller.getHandle());
        }
        viewmodel.setTagIfAbsent(TAG_SAVED_STATE_HANDLE_CONTROLLER, controller);
        return viewmodel;
    } catch (Exception e) {
       // ...
    }
}

private static final Class<?>[] ANDROID_VIEWMODEL_SIGNATURE = new Class[]{Application.class,
        SavedStateHandle.class};
private static final Class<?>[] VIEWMODEL_SIGNATURE = new Class[]{SavedStateHandle.class};

@SuppressWarnings("unchecked")
private static <T> Constructor<T> findMatchingConstructor(Class<T> modelClass,
        Class<?>[] signature) {
    for (Constructor<?> constructor : modelClass.getConstructors()) {
        Class<?>[] parameterTypes = constructor.getParameterTypes();
        if (Arrays.equals(signature, parameterTypes)) {
            return (Constructor<T>) constructor;
        }
    }
    return null;
}

通过 findMatchingConstructor 来寻找 ViewModel 是否有 SavedStateHandle 参数，然后通过反射来创建 ViewModel/AndroidViewModel 对象。

Ref

Android, Jetpack
Jetpack ViewModel
本文由作者按照 CC BY 4.0 进行授权
